Overview  Quick Details

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Gearing Arrangement:Helical

Output Torque:256-7449N.m

Input Speed:1400rpm

Output Speed:100~400RPM

Place of Origin:Zhejiang, China

Brand Name:WGT

Color:Blue / Grey / Customer requirement

ratio:5:1,13:1

out speed:100-400

input shaft keyway:6*3.5*59

Packaging & Delivery

Selling Units:Single item

Single package size: 20X20X42 cm

Single gross weight:55.000 kg

Package Type:One set in one wooden case,then big wooden case for many small wooden cases.

Lead Time :

Quantity(Sets)1 - 10>10

Conveyor & Material Handling

Mining & Quarry

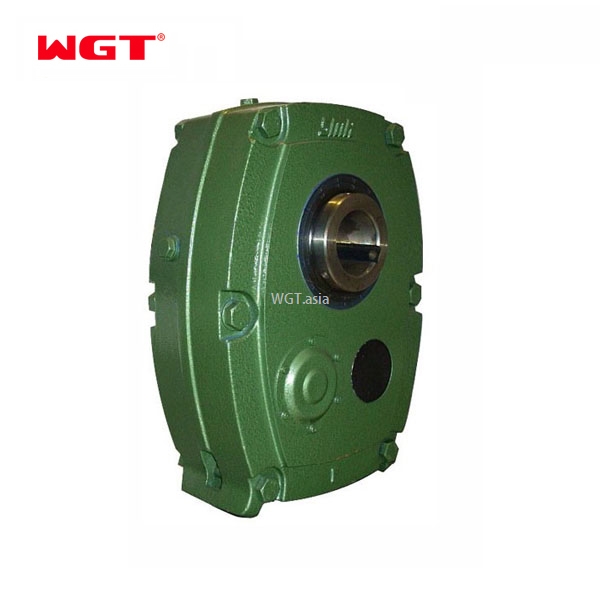

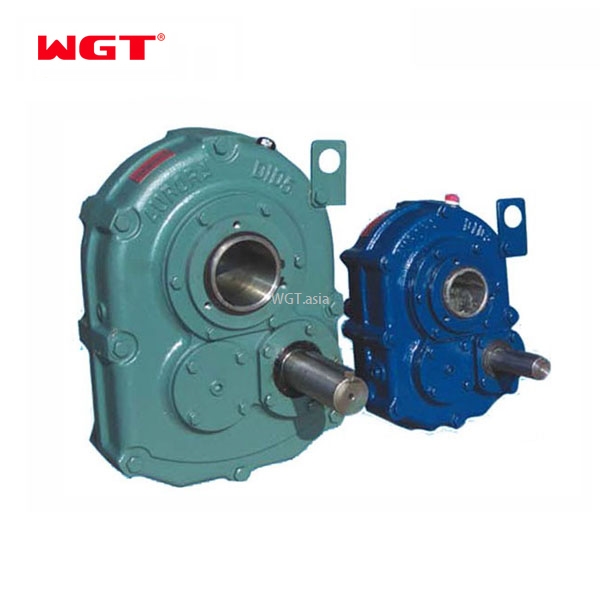

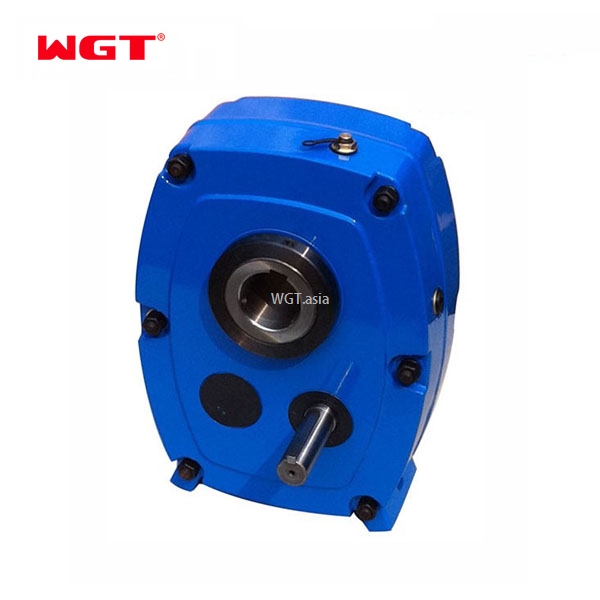

SMR Shafted mounted gearbox for conveyer systems

1) All gears are heat treated and fixed to achieve low noise and high output

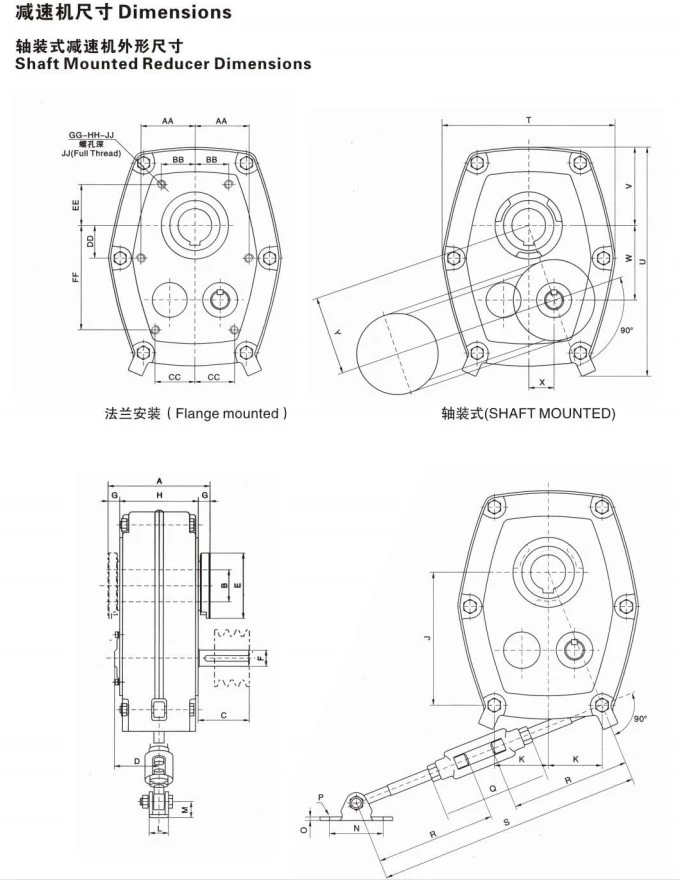

2) Mounting dimensions follow the standard industry frame dimensions
